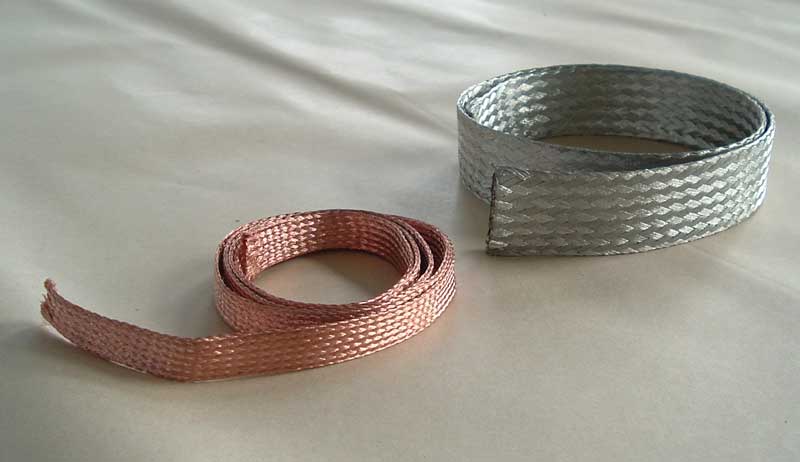

铜编织线
BRAIDED COPPER WIRE
TZ,
TZX铜编织线技术性能(JB2572-79)
SPECIFICATION OF
BRAIDED COPPER WIRE
TYPE TZ, TZX(JB2572-79)
铜编织线用于电气装置,开关电器,电炉及蓄电池等的软连接线。
The braided copper
wire is suitable
for the flexible
conductor of electric
installation, switch
gear, electric frunace,
storage battery,
etc.
- 铜编织线采用优质圆铜线(0.10, 0.15, 0.20)或镀锡软圆铜线(0.10, 0.15)以多股(24.36.48锭)经单层或多层编织成。
- 铜编织线的直流电阻率(20℃)不大于0.022Ω.mm2/m, 锡铜编织镀线的直流电阻率(20℃)不大于0.0234Ω.mm2/m。
- 型号、规格如表1,表2,表3。
- The
braided copper
wire is made by
braiding a number
of spindles(24,36,48)
of best quality
round wires(0.10,
0.15, 0.20) or
soft tinned wires(0.10,
0.15) to become
single layer or
multilayer type.
- DC
resistivity of
copper braided
wire (20℃)
is not more than
0.022Ω.mm2/m,
and the tinned
one is not more
than 0.0234Ω.mm2/m.
- Type
and specifications
are shown respectively
in table 1-3.
|
