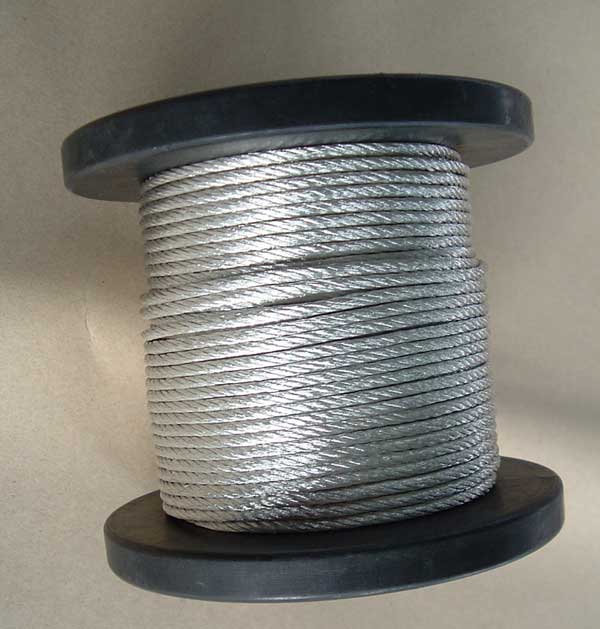

软铜绞线
Flexible
Copper Strand Conductors
1、绞合
软铜绞线外层的绞向为右向,除非供需双方另有协议。相邻层的绞向应相反。
2、型号、规格、直流电阻如表1、表2、表3。
注:客户如有特殊要求,可与本厂直接洽谈。
- Twist
The
outside layer
of the flexible
copper strand
conductors shall
be twisted in
the clockwise
direction, unless
otherwise specified.
The twist direction
of any layer shall
be contrary to
the adjacent layer.
- Types,
specifications and
DC resistance are
given in table 1,table2,table3.
Note:
Any specifications
can be available through
negotiation.
TJR1,
TJR2, TJR3, TJR*1,
TJR*2, TJR*3软铜绞线的技术性能(GB12970-91)
Specification
of flexible copper
strancl conductors
TYPE:
TJR1, TJR2, TJR3,
TJR*1, TJR*2,TJR*3(GB12970-91)
软铜绞线是电气装备及电子电器式元件接线用的软连接线。
The
fiexible copper strand
conductors is designed
for flexible connections
of electrical equipment,
electronic devices
or components.
表1
TJR1,TJRX1型
标称截面Nominal
cross section(mm2) |
计算截面Calculated
sross section(mm2) |
结构
Construction |
计算外径Calculated
ouside
diameter(mm) |
20℃直流电阻,不大于DCresistance
at 20℃ no
higher than
(Ω/km) |
计算重量Celculated
Weight(kg/km) |
单线总数Total
number of
single wires |
股数*根数/单线标称直径No.of
strands*No.of
wires Nominal
diameter of
a single wire(mm) |
TJR1 |
TJRX1 |
0.10
(0.12)
0.16
(0.20)
0.25
(0.30)
0.40
0.50
0.63
(0.75)
1.00
1.60
(2.00)
2.5
4.0
6.3
10
16
25
(35)
40
(50)
63
(70)
80
(95)
100
(120)
125
160
(185)
200
250
315
400
500
630
800
1000 |
0.102
0.124
0.159
0.194
0.247
0.300
0.408
0.503
0.628
0.754
1.01
1.57
1.96
2.41
3.94
6.16
10.01
15.84
25.08
35.14
40.15
48.30
62.72
68.64
78.20
94.06
99.68
117.67
124.69
162.86
183.85
196.15
251.95
310.58
398.92
498.30
627.1
804.3
1003.6 |
9
7
9
11
14
17
13
16
20
24
32
32
40
49
49
49
49
84
133
133
133
133
189
189
259
259
259
324
324
324
324
444
444
703
703
703
1159
1159
1159 |
9/0.12
7/0.15
9/0.15
11/0.15
14/0.15
17/0.15
13/0.20
16/0.20
20/0.20
24/0.20
32/0.20
32/0.25
40/0.25
7*7/0.25
7*7/0.32
7*7/0.40
7*7/0.51
7*12/0.49
19*7/0.49
19*7/0.58
19*7/0.62
19*7/0.68
27*7/0.65
27*7/0.68
37*7/0.62
37*7/0.68
37*7/0.70
27*12/0.68
27*12/0.70
27*12/0.80
27*12/0.85
37*12/0.75
37*12/0.85
37*19/0.75
37*19/0.85
37*19/0.95
61*19/0.83
61*19/0.94
61*19/1.05 |
0.44
0.45
0.56
0.60
0.68
0.74
0.86
0.96
1.05
1.14
1.30
1.63
1.82
2.25
2.88
3.60
4.59
6.17
7.35
8.70
9.30
10.20
12.00
12.53
13.02
14.28
14.70
17.39
17.90
20.20
21.74
21.80
24.72
26.25
29.75
33.25
37.35
42.30
47.25 |
176
145
133
92.9
72.9
60.3
44.2
36.0
28.8
24.0
17.9
11.5
9.24
7.58
4.64
2.97
1.83
1.16
0.736
0.525
0.459
0.382
0.294
0.269
0.236
0.196
0.185
0.157
0.148
0.113
0.100
0.0940
0.0732
0.0594
0.0462
0.0370
0.0294
0.0229
0.0184 |
179
147
115
94.4
74.1
61.3
44.9
36.6
29.3
24.4
18.2
11.7
9.39
7.92
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
-- |
0.94
1.15
1.47
1.80
2.29
2.80
3.79
4.70
5.86
7.04
9.43
14.7
18.3
22.7
37.1
58.0
94.3
150
239
334
382
459
597
653
744
895
948
1119
1186
1549
1749
1866
2397
2954
3795
4740
5965
7651
9547 |
表2
TJR2, TJRX2型
标称截面Nominal
cross section(mm2) |
计算截面Calculated
sross section(mm2) |
结构
Construction |
计算外径
Calculated
ouside
diameter
(mm) |
20℃直流电阻,不大于
DC resistance
at 20℃ no
higher than
(Ω/km) |
计算重量Celculated
Weight(kg/km) |
单线总数Total
number of
single wires |
股数*根数/单线标称直径No.of
strands*No.of
wires Nominal
diameter of
a single wire(mm) |
TJR2 |
TJRX2 |
2.5
4.0
6.3
10
16
25
(35)
40
(50)
63 |
2.47
3.96
6.16
9.90
15.83
25.07
35.41
40.02
49.26
63.11 |
140
126
196
315
504
798
1127
1274
1568
2009 |
7*20/0.15
7*18/0.20
7*28/0.20
7*45/0.20
12*42/0.20
19*42/0.20
7*7*23/0.20
7*7*26/0.20
7*7*32/0.20
7*7*41/0.20 |
2.36
3.00
3.72
4.62
6.18
7.45
10.47
10.62
11.70
13.32 |
7.40
4.62
2.97
1.85
1.16
0.736
0.521
0.461
0.375
0.292 |
7.73
4.82
3.10
1.93
1.23
0.781
0.545
0.482
0.392
0.305 |
23.3
37.3
58.0
93.3
150
238
337
381
469
600 |
表3
TJR3, TJRX 3型
标称截面Nominal
cross section(mm2) |
计算截面Calculated
cross section(mm2) |
结构
Construction |
计算外径Calculated
ouside
diameter(mm) |
20℃直流电阻,不大于DC
resistance
at 20℃ no
higher than
(Ω/km) |
计算重量Celculated
Weight(kg/km) |
单线总数Total
number of
single wires |
股数*根数/单线标称直No.of
strands*No.of
wires Nominal
diameter of
a single wire(mm) |
TJR1 |
TJRX1 |
0.025
0.04
0.063
0.10
0.16
0.25
(0.30)
0.40
(0.50)
0.63
(0.75)
1.0
1.6
2.5
4
6.3
10
16
25
(35)
40
(50)
63
(70)
80
(95)
100
(120)
125
160
(185)
200
250
315
400
500 |
0.0255
0.0385
0.0616
0.100
0.158
0.250
0.296
0.404
0.512
0.620
0.754
0.997
1.57
2.49
4.03
6.27
10.00
15.83
25.07
34.47
39.96
49.36
63.46
70.51
79.91
94.01
100.73
120.87
127.59
159.49
185.00
196.15
251.08
310.58
397.54
496.92 |
13
10
16
26
41
65
77
105
133
161
196
259
408
646
513
798
1273
2016
3192
4389
2261
2793
3591
3990
4522
5320
5700
6840
7220
9025
10469
11100
14208
17575
22496
28120 |
13/0.05
10/0.07
16/0.07
26/0.07
41/0.07
65/0.07
7*11/0.07
7*15/0.07
7*19/0.07
7*23/0.07
7*28/0.07
7*37/0.07
12*34/0.07
19*34/0.07
19*27/0.10
19*42/0.10
19*67/0.10
12*7*24/0.10
19*7*24/0.10
19*7*33/0.10
19*7*17/0.15
19*7*21/0.15
19*7*27/0.15
19*7*30/0.15
19*7*34/0.15
19*7*40/0.15
19*12*25/0.15
19*12*30/0.15
19*19*20/0.15
19*19*25/0.15
19*19*29/0.15
37*12*25/0.15
37*12*32/0.15
37*19*25/0.15
37*19*32/0.15
37*19*40/0.15 |
0.22
0.27
0.34
0.42
0.52
0.65
0.84
0.97
1.05
1.18
1.28
1.47
1.97
2.35
3.08
3.73
4.73
7.18
8.55
9.90
11.03
12.15
13.50
14.18
15.08
16.43
18.27
20.24
20.29
21.75
23.25
25.58
28.67
30.45
34.13
38.06 |
707
466
294
181
115
72.4
61.7
45.2
35.7
29.5
24.2
18.3
11.70
7.41
4.58
2.94
1.85
1.16
0.736
0.535
0.462
0.374
0.291
0.262
0.231
0.196
0.183
0.153
0.145
0.116
0.0997
0.0940
0.0735
0.0594
0.0464
0.371 |
759
500
316
194
123
77.7
64.5
48.5
38.3
31.7
26.0
19.6
12.6
7.96
4.79
3.07
1.93
1.21
0.769
0.559
0.483
0.391
0.304
0.274
0.241
0.205
0.191
0.160
0.152
0.121
0.104
0.0982
0.0768
0.0621
0.0485
0.0388 |
0.24
0.36
0.58
0.93
1.47
2.33
2.79
3.81
4.82
5.84
7.11
9.40
14.8
23.7
38.3
59.6
95.1
150
238
328
380
470
604
671
760
894
958
1150
1214
1517
1760
1866
2388
2954
3782
4727 |
|
